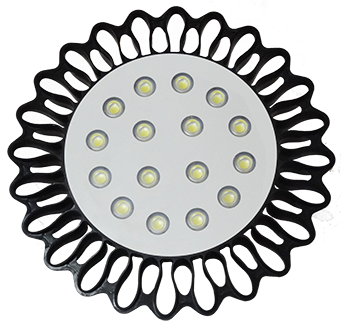

Semiaquilegia LED High Bay Light

Print this Page

DESCRIPTION
INTRODUCTION
COMPONENTES LIST
MATERIAL FEATURES
FAQ
SEND INQUIRY

	Model	Power(W)		LED Q.T.Y.	Light Flux	Lamp Efficiency	CRI	CCT
	DS-BY-50W	50W	30 Degree	3PCS	＞4250 lm	＞85 lm/w	＞70	5700K±300K
	DS-BY-50W	50W	60 Degree	3PCS	＞4250 lm	＞85 lm/w	＞70	5700K±300K
	DS-BY-50W	50W	90 Degree	3PCS	＞4250 lm	＞85 lm/w	＞70	5700K±300K
	DS-BY-50W	50W	120 Degree	3PCS	＞4250 lm	＞85 lm/w	＞70	5700K±300K
	DS-BY-100W	100W	30 Degree	8 PCS	＞9000lm	＞90lm/w	＞70	5700K±300K
	DS-BY-100W	100W	60 Degree	8 PCS	＞9000lm	＞90lm/w	＞70	5700K±300K
	DS-BY-100W	100W	90 Degree	8 PCS	＞9000lm	＞90lm/w	＞70	5700K±300K
	DS-BY-100W	100W	120 Degree	8 PCS	＞9000lm	＞90lm/w	＞70	5700K±300K
	DS-BY-150W	150W	30 Degree	12 PCS	＞13500lm	＞90lm/w	＞70	5700K±300K
	DS-BY-150W	150W	60 Degree	12 PCS	＞13500lm	＞90lm/w	＞70	5700K±300K
	DS-BY-150W	150W	90 Degree	12 PCS	＞13500lm	＞90lm/w	＞70	5700K±300K
	DS-BY-150W	150W	120 Degree	12 PCS	＞13500lm	＞90lm/w	＞70	5700K±300K
	DS-BY-200W	200W	30 Degree	16 PCS	＞18000 lm	＞90lm/w	≥70	5700K±300K
	DS-BY-200W	200W	60 Degree	16 PCS	＞18000 lm	＞90lm/w	≥70	5700K±300K
	DS-BY-200W	200W	90 Degree	16 PCS	＞18000 lm	＞90lm/w	≥70	5700K±300K
	DS-BY-200W	200W	120 Degree	16 PCS	＞18000 lm	＞90lm/w	≥70	5700K±300K
	YHL-ID-150-HB-VD/C	150W	120 Degree	180 PCS	>16500lm	≥110lm/W	≥70	4500～5500K(2500～3500K optional)

Model	Voltage	Weight	IP	Size	Materials	Packing	Installation Mode	Appearance Color
DS-BY-50W	100~240V	2.3Kg	IP65	H215* Φ200mm	Aluminium Alloy+ PBT	1PCS/ Carton	E40 lamp holder	White
DS-BY-50W	100~240V	2.3Kg	IP65	H215* Φ200mm	Aluminium Alloy+ PBT	1PCS/ Carton	E40 lamp holder	White
DS-BY-50W	100~240V	2.3Kg	IP65	H215* Φ200mm	Aluminium Alloy+ PBT	1PCS/ Carton	E40 lamp holder	White
DS-BY-50W	100~240V	2.3Kg	IP65	H215* Φ200mm	Aluminium Alloy+ PBT	1PCS/ Carton	E40 lamp holder	White
DS-BY-100W	100~240V	4.5Kg	IP65	H187* Φ353mm	Aluminium Alloy+ PBT	1PCS/ Carton	Hook type hoisting	Black
DS-BY-100W	100~240V	4.5Kg	IP65	H187* Φ353mm	Aluminium Alloy+ PBT	1PCS/ Carton	Hook type hoisting	Black
DS-BY-100W	100~240V	4.5Kg	IP65	H187* Φ353mm	Aluminium Alloy+ PBT	1PCS/ Carton	Hook type hoisting	Black
DS-BY-100W	100~240V	4.5Kg	IP65	H187* Φ353mm	Aluminium Alloy+ PBT	1PCS/ Carton	Hook type hoisting	Black
DS-BY-150W	100~240V	6.9Kg	IP65	H187* Φ450mm	Aluminium Alloy+ PBT	1PCS/ Carton	Hook type hoisting	Black
DS-BY-150W	100~240V	6.9Kg	IP65	H187* Φ450mm	Aluminium Alloy+ PBT	1PCS/ Carton	Hook type hoisting	Black
DS-BY-150W	100~240V	6.9Kg	IP65	H187* Φ450mm	Aluminium Alloy+ PBT	1PCS/ Carton	Hook type hoisting	Black
DS-BY-150W	100~240V	6.9Kg	IP65	H187* Φ450mm	Aluminium Alloy+ PBT	1PCS/ Carton	Hook type hoisting	Black
DS-BY-200W	100~240V	8.1 Kg	IP65	H187* Φ525mm	Aluminium Alloy+ PBT	1PCS/ Carton	Hook type hoisting	Black
DS-BY-200W	100~240V	8.1 Kg	IP65	H187* Φ525mm	Aluminium Alloy+ PBT	1PCS/ Carton	Hook type hoisting	Black
DS-BY-200W	100~240V	8.1 Kg	IP65	H187* Φ525mm	Aluminium Alloy+ PBT	1PCS/ Carton	Hook type hoisting	Black
DS-BY-200W	100~240V	8.1 Kg	IP65	H187* Φ525mm	Aluminium Alloy+ PBT	1PCS/ Carton	Hook type hoisting	Black
YHL-ID-150-HB-VD/C	AC 100～277V	5.8kg±0.3kg	IP65	L360mm×W360mm× H229.5mm	Aluminum Alloy	1PCS/ Carton	Hook type hoisting	Black
