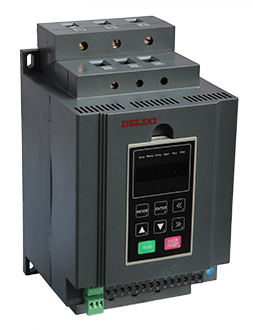

The Delixi Soft Starter is a motor control equipment featuring soft start, soft parking, light-loading and energy-saving as well as multi-functional protection. The soft starter enables smooth and impact-less start during the whole start process, and the parameters such as current limit and start time can be adjusted according to the characteristics of the motor load. It can be divided into two categories: the Device-type Soft Starter and the Comprehensive-protection Soft Starter.
◆ A Variety of Start Modes: Current limit soft start, ramp voltage soft start, ramp voltage + current limit soft start.
◆ Highly Reliable: A high-performance microprocessor performs digital processing of the signals in the control system.
◆ Strong Anti-interference Capability: Easy-tuning, optoelectronic-isolator-based signal transmission in the processing unit, different anti-noise levels.
◆ Optimum Structure: Unique compact structure, double-layer shell consisting of plastic upper layer and metal lower layer to meet the aesthetic and durability requirements.
◆ Motor Protection: Multi-functional protection (e.g. in case of over-current, input/output default phase, SCR short-circuit and overheat).
◆ Easy Maintenance: Four-digit signal monitoring system to monitor the operation of the system equipments in 24 hours and to offer quick fault diagnosis.
| Model | Rated Power （kw） |
Rated Current （A） |
Circuit Breaker （QF） |
Bypass Contactor (KM) |
Primary Line |
| CDRA011T4 | 11 | 25 | CDM1-63L/32 | CJ20-25 | 6mm Cable |
| CDRA015T4 | 15 | 32 | CDM1-63L/40 | CJ20-40 | 30*3mm Copper Bar |
| CDRA018T4 | 18.5 | 37 | CDM1-63L/50 | CJ20-40 | 30*3mm Copper Bar |
| CDRA022T4 | 22 | 45 | CDM1-63L/63 | CJ20-63 | 30*4mm Copper Bar |
| CDRA030T4 | 30 | 60 | CDM1-100L/80 | CJ20-63 | 30*4mm Copper Bar |
| CDRA037T4 | 37 | 75 | CDM1-100L/100 | CJ20-100 | 40*4mm Copper Bar |
| CDRA045T4 | 45 | 90 | CDM1-225L/125 | CJ20-100 | 40*5mm Copper Bar |
| CDRA055T4 | 55 | 110 | CDM1-225L/160 | CJ20-160 | 40*5mm Copper Bar |
| CDRA075T4 | 75 | 152 | CDM1-225L/180 | CJ20-160 | 50*5mm Copper Bar |
| CDRA093T4 | 93 | 176 | CDM1-225L/200 | CJ20-250 | 50*5mm Copper Bar |
| CDRA110T4 | 110 | 210 | CDM1-400L/250 | CJ20-250 | 50*5mm Copper Bar |
| CDRA132T4 | 132 | 253 | CDM1-400L/315 | CJ20-400 | 50*5mm Copper Bar |
| CDRA160T4 | 160 | 300 | CDM1-400L/350 | CJ20-400 | 10mm Cable |
| CDRA200T4 | 200 | 380 | CDM1-400L/400 | CJ20-400 | 10mm Cable |
| CDRA250T4 | 250 | 480 | CDM1-630L/630 | CJ20-630 | 16mm Cable |
| CDRA320T4 | 320 | 600 | CDM1-800H/700 | CJ40-800 | 25mm Cable |
| CDRA400T4 | 400 | 750 | CDM1-800H/800 | CJ40-1000 | 35mm Cable |
| CDRA450T4 | 450 | 892 | CDM1-1250/1000 | CJ40-1000 | 35mm Cable |
| CDRA500T4 | 500 | 930 | CDM1-1250/1250 | CJ40-1000 | 35mm Cable |
| CDRA600T4 | 600 | 1100 | CDM1-1250/1250 | CJ40-1000 | 35mm Cable |
Applications:
The soft starter can be applied to motors in crushers, compressors, transmission, pumps and air blowers.
