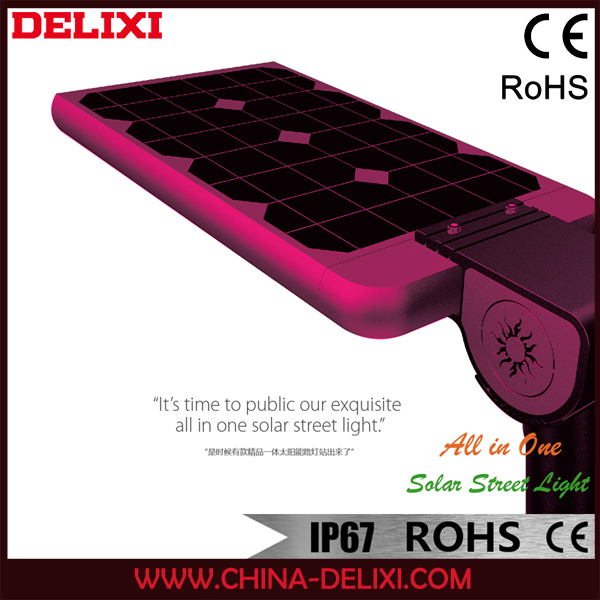

- Integrate solar panels and battery and controller
- Battery inside, anti-theft
- With Infrared Sensor
- Without Cable connection work, 5 min only to finish the installation work.
- LED Chip: Philips/Samsung optional
- title Angle: 10-20°adjustable ( solar panel receive most solar energy)
- Warranty: 3 years
- IP 67
-
Easy installation work, saving a lot of installation worker cost. And smaller CBM, saving a lot transport freight.
|
Type No. |
SP-45W |
SP-70W |
||||
|
Model |
Mono |
Mono |
||||
|
Size(MM) |
125*62.5 |
125*83.2 |
||||
|
Number of cells (Pcs) |
36(3*12) |
36(3*12) |
||||
|
Max Power(W) |
45 |
70 |
||||
|
Max Working Voltage(V) |
18 |
18 |
||||
|
Max Working Current(A) |
2.5 |
3.89 |
||||
|
Open circuit voltage (V) |
22 |
22 |
||||
|
Short circuit current (A) |
2.78 |
4.15 |
||||
|
Size of module (mm) |
790*410*3.2 |
1050*410*3.2 |
||||
|
N.W of Module(kg) |
3 |
4 |
||||
|
Cell Efficiency |
17.78% |
18.67% |
||||
|
Working Temperature |
-40℃ ~ +50℃ |
-40℃ ~ +50℃ |
||||
|
Allowable Hail Load |
60m/s (200kg/sq.m) |
60m/s (200kg/sq.m) |
||||
|
Power Tolerance |
±5% |
±5% |
||||
|
Warranty |
25 years |
25 years |
||||
|
Specification |
15AH |
20AH |
25AH |
30AH |
|||||
|
Working Voltage |
12.8V |
12.8V |
12.8V |
12.8V |
|||||
|
Cut-off Voltage |
10.0V |
10.0V |
10.0V |
10.0V |
|||||
|
Max.Charge Voltage |
14.6V |
14.6V |
14.6V |
14.6V |
|||||
|
Internal Resistance |
≤190mΩ |
≤180mΩ |
≤175mΩ |
≤170mΩ |
|||||
|
Maximum Charging Current |
1.0 C5A |
1.0 C5A |
1.0 C5A |
1.0 C5A |
|||||
|
Maximum Discharge Continuous Current |
1.5 C5A |
1.5 C5A |
1.5 C5A |
1.5 C5A |
|||||
|
Operating Temperature Range |
Charging: 0~45℃ |
Charging: 0~45℃ |
Charging: 0~45℃ |
Charging: 0~45℃ |
|||||
|
Warranty |
3 years |
3 years |
3years |
3years |
|||||
|
Storage Temperature Range |
< 1 year:-20~25℃ |
||||||||
